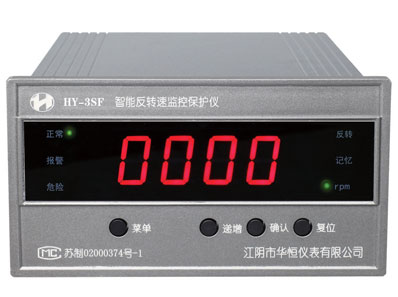

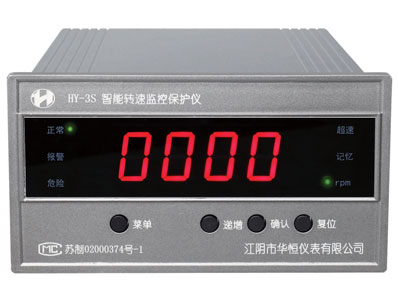

HY-3S intelligentized speed meter is used for speed measuring and inverse rotating protection of power steam turbine, industrial turbine, pump and fan. It is non-contact measurement, can measure any teeth number, and accuracy is 1 rpm, can memorize and display maximum, 3rd level alarm switch, real time signal output and 4～20mA currency output.

1. Realized intelligentized process, all functions can be set by screen button.
2. Suitable for monitoring online in a long term, easy to install and commissioning.
3. Output value of alarm and trip for zero speed and inverse speed.
4. Output of 4～20mA.
5. Full scale, alarm, trip, overspeed value can be set by button.
6. Auto memorizes and review maximum value measured.


1. Measuring range:0～9999rpm;
2. Input signal: with RS-1(magnetoresistance) or RS-2(hall) speed sensor;
        With CWY-DO proximity sensor;
        With RS-3 (hall) inverse speed sensor;
3. Number of teeth: any;
4. Measurement accuracy: ±1 rpm;
5. Display model: 4 digits or 5 digits LED (or LCD);
6. Signal output:
        a. 4～20mA (load resistance≤850Ω);
        b. PULSE real time signal output (can analyze waveform);
        c. RS485 signal output;
        d. on-off output: two on-off outputs for each channel (AC250V/5A, DC27V/2A);
7. Environmental temperature:-15℃~65℃ (relative humidity≤80％);
8. Supply voltage: AC 85V～265V or DC 120V～370V;
9. Installation: in panel or local protecting box
        Overall size: 160×80×210(mm);
        Hole dimension:152×76 (mm);
